SLIDER BUGGY PARTS

Your Slider Buggy should contain the following parts. If the buggy parts are not complete, please contact us immediately.

PARTS:

  • 3 Wheels (un-inflated) with fitted bearings
  • 1 Front Fork (newer version has Foot Pegs welded on)
  • 1 left and 1 right Side Frame
  • 1 Front Downtube with fitted bearing bushings
  • 2 Foot Pegs
  • 1 Seat
  • 1 Splashguard

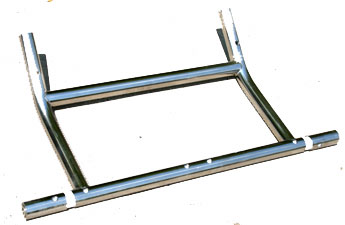

  • 1 Slider Axle with fitted bushings (includes Slider rear axle frame, Slider inserts and Slider axle ends (newer version has Stainless Sliders with axle ends integrated).
  • 1 Nuts & Bolts Bag including the following:
    1 stainless steel bolt with large flat washer for the front fork.
    2 stainless steel bolts with self-locking nuts for the foot-pegs.
    2 stainless steel bolts with self-locking nuts for connecting the side frames to the down-tube.
    2 stainless steel bolts with self-locking nuts for securing the Slider axle caps to the ends of the Slider axles.
    2 Pin & Key assemblies for adjusting the Slider axles in the rear axle frame.
    2 stainless steel bolts with self-locking nuts for securing the side tubes to the rear axle frame.
    2 hi-tensile steel bolts with spring washers for mounting both rear wheels to the Slider axle ends (caps).
    1 stainless steel front axle bolt with self-locking nut and two wheel spacers.
  • Details HERE
