New 6020 GPS

The Flytec 6020 is the next evolution of the very popular and successful 5020.

It features an enlarged 1/8 VGA high-res display that is 60% larger than the 5020 in a thin and sexy housing. The 6020 also has a larger easier to use keypad that has 3 more keys, giving direst access to all key flight functions.

The 6020 features the latest generation CPU yielding faster map redraws, list scrolling and screen refreshes. Connection to a PC for upload, download and firmware updates is via a USB port. Optional Bluetooth connection to a cell phone for real-time tracking. There is even an SD card for future expansion.

The 6020 has an improved menu structure and terminology and can be set for several different languages.

Included with 6020:

• Exclusive Flytec USA manual
• USB PC interface cable
• FlyChart Professional license
• Protective carry bag
• 4 AA alkaline batteries
• 2 year warranty
• Optional PG and HG airspeed sensor available

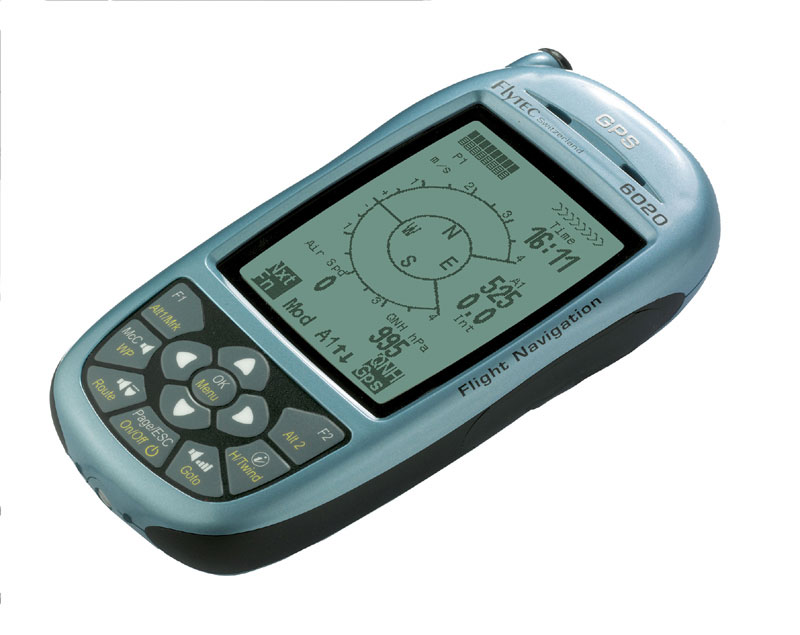

Flytec 6020 GPS

Function overview:

• Flight instrument with integrated 16 channel GPS receiver w/internal antenna.
• Large, high contrast, graphic LCD display (2-3/8" x 3-1/8") resolution of 160 x 240 pixels
• Ergonomic two tone keypad with easy menu structure
• Accurate battery status shown for both battery banks at start-up, during flight and on shut-down
• Optional Bluetooth connection to cell phone for real-time tracking (not yet implemented)
• SD memory card slot for future implementation
• Two event driven soft keys allow access to important functions performed without navigating through different menus
• Audio functions are adjustable over a wide range and can be set to automatically increase with speed.
• Up to 200 waypoints can be defined.
• Up to 20 routes, each with 30 waypoints can be stored
• Automatic pilot notification, when an FAI/competition cylinder is passed (enter or exit)
• Automatic indication to the last last thermal
• Automatic or manual start and stop of data logging
• Up to 291 hours of FAI/IGC data logging memory at 60 sec record interval, 9 hours at 2 sec and 48 hours at 10 sec (recommended).
• Automatically records a point upon entry/exit of  FAI sector/turn point  with acoustic and visual notification
• Each track log point records: longitude, latitude, altitude (pressure + GPS based), true airspeed, ground speed
• Compatible with FlyChart which allows easy set-up of functions as well as download/upload of waypoints, routes and flight tracks
• Recorded flight conforms completely to IGC-rules (including the digital signature)
• Compatible with flight evaluation programs (SeeYou - CompeGPS - Maxpunkte - Trackview - GPSVar - IQ-Online) for posting flights to OLC

• Calculated airspeed (no external sensor required)
• Input for optional external vane type airspeed sensor for more accurate airspeed
• Analog and digital displays can be set to the pilot's preferences
• 3 flight screens: Main vario/data, Glide and Map
• Main screen has 3 user-pages with 3 user-selectable data fields per page that can be chosen from:
  • Wind speed (direction shown on compass rose)
  • Calculated airspeed (no airspeed sensor required)
  • Wind component in flight direction
  • Time of day
  • Flight time
  • Ambient temperature
  • Ground speed
  • Altitude above best glide line
  • Altitude above best glide line around WP(s) to goal
  • Altimeter 1
  • Altimeter 2 (relative)
  • Altimeter 3 (cumulative altitude)
  • Flight level
  • Barometric pressure (hPa/inHg)
  • Digital variometer
  • Distance to destination
  • Distance to goal
  • Distance to cylinder
  • Distance to restricted area
  • Distance to take-off (for OLC)
  • Distance back to last thermal
  • Bearing
  • Track
  • Cross-track error
  • Glide ratio (through air, over ground, to waypoint)
  • Glide ratio to goal (around remaining turnpoints)
  • SMS send interval
• Simulation mode- Flights may be simulated and features can be tested
• All ports have integral aerodynamic covers
• Dimension: 6-3/4" x 3-3/8" x 1"
• Weight: 12 oz. (without attachment)
